CHG series
- CHG series is made of steel.
- It has specialized shape to grip a thin round stick etc.
- It is used for push-pull test.
- Examples

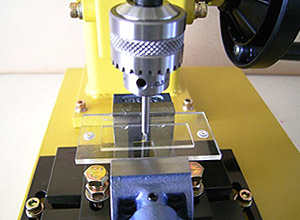

The break down test of the comperessive load against the work made of the resin is being operated with vertical load measuring stand (K-501H) and a push-pull gauge.   Round stick chuck (CHG-5) and vise (GV-500N) are used.
Standard specification
Model CHG-5
External dimensional drawing CLICK!
Maximum load 10N
Width of chuckfs entrance 0.5`5
Shape of tightening surface Three nails
Material steel
- We will sell it with upper and lower part separated.
- When you order a set, the board for installing resisting pressure board is attached to one side of the chuck.
The board for installing resisting pressure board isnft attached when you order single unit.
If you need the board, you can get it optionally.
- We will remodel the above-mentioned special items to your requested jig.
We will produce special jigs depend on your request except for the above-mentioned items.
Please feel free to contact us.
