ks series
Load measurement stand that narrows function, and made to low price slimming

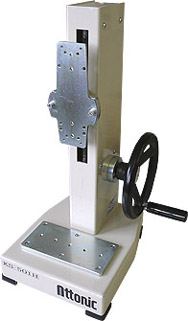

KS-501H(manual vertical load measurement stand)
KS-501H - The load measuring instrument is installed by a vertical desk-top manual operation type, and it uses it for compression and the forced duction test.
- The installation board where the load measuring instrument was installed moves up and down.
- The permissible capacity at rated load center distance is 500N(about 50kgf).
- The width of the main body is 200mm亊250mm in depth 亊455mm in height.
- Weight is half 9kg compared with our standard load measurement stand "K-501H".
- The lineup to externals 10kN (about 1t) types that can correspond from the resin molding goods to the inspection of metal products is being examined.

Combining acceptable model
丒Push-pull tester:
AP seriesMP seriesMPS series乮MPS-500N or less)MPC series乮MPC-500N or less乯
丒Digital force gauge:
AD-FG series

Catalog of KS series

Main body externals dimensional drawing

Detection machine installation board

Specification
Model KS-501H
Size mm(length 亊 side 亊 depth) 455亊200亊250
Weight About 9kg
Permissible capacity at rated load
center distance
500N
The maximum stroke 150mm
Sending pitch 2.0mm/1rev.
Main body color Ivory

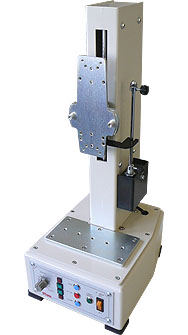

KS-501E(electric vertical load measuring stand)
KS-501E - The load measuring instrument is installed by a vertical desk-top electric operation type, and it uses it for compression and the forced duction test.
- The installation board where the load measuring instrument was installed moves up and down.
- The permissible capacity at rated load center distance is 500N(about 50kgf).
- The width of the main body is 200mm亊300mm in depth 亊530mm in height.
- Weight is half 13kg compared with our standard load measurement stand "K-501E".

Combining acceptable model
丒Push-pull tester:
AP seriesMP seriesMPS series乮MPS-500N or less)MPC series乮MPC-500N or less乯
丒Digital force gauge:
AD-FG series

Catalog of KS series

Main body externals dimensional drawing

Detection machine installation board

Specification
Model KS-501E
Size mm(length 亊 side 亊 depth) 540亊225亊275
乮 include projections乯
Weight About 13kg
Permissible capacity at rated load
center distance
500N
The maximum stroke 150mm
Speed 5乣200mm/min
Drive system DC brushless motor
Power-supply voltage AC100V乣240V
Main body color Ivory
to the head of this page

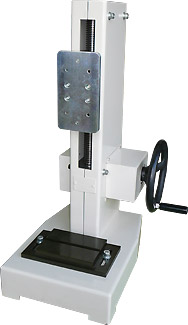

KS-504H(manual vertical load measurement stand)仸Special specification
KS-504H - To reduce the inefficiency of work by the expansion of the deceleration ratio (steering wheel rotation ratio) according to making to a high load, the fast-forwarding mechanism was equipped normally. It is possible to do by the fast-forwarding operation such as return work and positional putting out after it measures it.
- It is the best load stand for compression and the tension test on a simple high load.
- The improvement of externals and the installation part where a load cell on hand and the force gauge cling is also possible.
- Permissible capacity at rated load center distance ゥ 10KN(1ton)
- Weight ゥ About 45kg乣
- Combining acceptable model
ush-pull tester: MPL-10KN(Be developing. )
igital force gauge: ARF-10KN(Be developing. )

仸Special specification
Specification
Model KS-504H
Size mm(length 亊 side 亊 depth) 690亊280亊400
Weight About 45kg
Permissible capacity at rated load
center distance
10K俶
The maximum stroke 250倣倣
Sending pitch 0.116倣倣/1rev.
Sending pitch乮Fast forwarding乯 About 0.5mm/1rev.
Main body color Ivory

仸Special specification
Specification
Model KS-504H
Size mm(length 亊 side 亊 depth) 595亊500亊540
Weight About 60kg
Permissible capacity at rated load
center distance
10K俶
The maximum stroke 150倣倣
Sending pitch 0.16倣倣/1rev.
Sending pitch乮Fast forwarding乯 About 1.66mm/1rev
