K series
Load stand where measurement for a long time when it sits in desk-top is possible
K-501H(manual vertical load measuring stand)
- It is small, light-weight and low price.
- The operating part was reinforced, and the minor change was done for a smooth mechanism to decrease swinging more.
- The height of the table was lowered, and long-time measurement was enabled at the desk-top.
- It is push-pull load measuring stand up to 500N (50kg).

- Combining acceptable model
ush-pull tester:AP seriesMP seriesMPS series乮MPS-500N or less)MPC series乮MPC-500N or less乯
丒Digital force gauge:
AD-FG series
Catalog of K-501 series
Main body externals dimensional drawing

Detection machine installation board

Sample table
Specification
Model K-501H
Size mm(length 亊 side 亊 depth) 470亊245亊350
Weight About 22倠倗
Maximum load capacity 500N
The maximum stroke 150mm
Sending pitch 2.0倣倣/1rev.
K-501E(electric vertical load measuring stand)
- It is small, light-weight and low price in the field of Motorized type.
- The operating part was reinforced, and the minor change was done for smooth mechanism to decrease swinging more.
- Movement at maximum speed is enabled by pushing 乬high speed button乭 while operating, and repeated operation is improved.
- It is push-pull load measuring stand up to 500N (50kg).

- Combining acceptable model
ush-pull tester:AP seriesMP seriesMPS series乮MPS-500N or less)MPC series乮MPC-500N or less乯
丒Digital force gauge:
AD-FG series
Catalog of K-501 series
Main body externals dimensional drawing

Detection machine installation board

Sample table
Specification
Model K-501E
Size mm(length 亊 side 亊 depth) 520亊250亊350
Weight About 30倠倗
Maximum load capacity 500N
The maximum stroke 侾25倣倣
Sending pitch 10乣100mm/min
To the head of this page
K-501HR(manual vertical load measuring stand)
K-501HR - It is small, light-weight and low price.
- The operating part was reinforced, and the minor change was done for a smooth mechanism to decrease swinging more.
- The height of the table was lowered, and long-time measurement was enabled at the desk-top.
- It is push-pull load measuring stand up to 500N (50kg).

- Combining acceptable model
ush-pull tester:AP seriesMP seriesMPS series乮MPS-500N or less)MPC series乮MPC-500N or less乯
丒Digital force gauge:
AD-FG series
Main body externals dimensional drawing

Detection machine installation board

Sample table
Specification
Model K-501HR
Size mm(length 亊 side 亊 depth) 470亊245亊350
Weight About 22倠倗
Maximum load capacity 500N
The maximum stroke 60倣倣
K-505H(manual horizontal load measuring stand)
K-505H - It is small, light-weight and low price.
- The height of the table was lowered, and long-time measurement was enabled at the desk-top.
- It is push-pull load measuring stand up to 500N (50kg).

- Combining acceptable model
ush-pull tester:AP seriesMP seriesMPS series乮MPS-500N or less)MPC series乮MPC-500N or less乯
丒Digital force gauge:
AD-FG series
Main body externals dimensional drawing

Detection machine installation board
Specification
Model K-505H
Size mm(length 亊 side 亊 depth) 190亊375亊240
Weight About 15倠倗
Maximum load capacity 500N
The maximum stroke 侾25倣倣
Sending pitch 2.0倣倣/1rev.
To the head of this page
K-505E(electric horizontal load measuring stand)
- It is small, light-weight and low price in the field of Motorized type.
- Movement at maximum speed is enabled by pushing 乬high speed button乭 while operating, and repeated operation is improved.
- It is push-pull load measuring stand up to 500N (50kg).

- Combining acceptable model
ush-pull tester:AP seriesMP seriesMPS series乮MPS-500N or less)MPC series乮MPC-500N or less乯
丒Digital force gauge:
AD-FG series
Main body externals dimensional drawing

Detection machine installation board
Specification
Model K-505E
Size mm(length 亊 side 亊 depth) (235乣255乯亊377亊200
Weight About 20倠倗
Maximum load capacity 500N
The maximum stroke 侾25倣倣
Sending pitch 10乣100mm/min
K-505HR(manual horizontal load measurement stand)
- It is small, light-weight and low price.
- It is lever type manual load measuringt stand.
- The height of the table was lowered, and long-time measurement was enabled at the desk-top.
- It is push-pull load measuring stand up to 500N (50kg).

- Combining acceptable model
ush-pull tester:AP seriesMP seriesMPS series乮MPS-500N or less)MPC series乮MPC-500N or less乯
丒Digital force gauge:
AD-FG series
Main body externals dimensional drawing

Detection machine installation board
Specification
Model K-505HR
Size mm(length 亊 side 亊 depth) 280亊370亊200
Weight About 15倠倗
Maximum load capacity 500N
The maximum stroke 60倣倣
To the head of this page
K-506H(manual horizontal load measuring stand)
K-506H - It is a large-scale, long size commodity.
- It is push-pull load measuring stand with maximum load capacity 2KN (200kgf).

- Combining acceptable model
MPL series(1KN/2KN)
Main body externals dimensional drawing
巇條
Model K-506H
Size mm(length 亊 side 亊 depth) 290亊675亊300
Weight
Maximum load capacity 2KN
The maximum stroke 100倣倣
Sending pitch 0.5倣倣/1rev.
俲-50俀H(manual vertical load measuring stand)
K-502H - It is a load stand that can be measured up to 2KN(200kgf) for the measurement that is pushed and pulled.

- Combining acceptable model
MPL series(1KN/2KN)

Catalog of K-502 series

Main body externals dimensional drawing

Standard issue
Model K-502H
Size mm(length 亊 side 亊 depth) 760mm
Weight About 65倠倗
Maximum load capacity 2KN
The maximum stroke 150倣倣
Sending pitch 0.5倣倣/1rev.
To the head of this page
K-502E(electric vertical load measuring stand)
K-502E - It is a load stand that can be measured up to 2KN(200kgf) for the measurement that is pushed and pulled.
- The digital force gauge in the photograph is an optional.

- Combining acceptable model
MPL series(1KN/2KN)

Catalog of K-502 series

Main body externals dimensional drawing

Standard issue
Model K-502E
Size mm(length 亊 side 亊 depth) 760mm
Weight About 75倠倗
Maximum load capacity 2KN
The maximum stroke 150倣倣
Sending pitch 5乣50倣倣/min

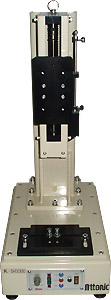

K-503E(electric vertical load measuring stand)
K-503E - It is a large-scale, long size product.
- It is a load stand that can be measured up to 5KN(500kgf) for the measurement that is pushed and pulled.

- Combining acceptable model
MPL series

Main body externals dimensional drawing

Standard issue
Model K-503E
Size mm(length 亊 side 亊 depth) 782亊325亊475
Weight About 55倠倗
Maximum load capacity 5KN
The maximum stroke 175倣倣
Speed 5乣50倣倣/min
Size of specimen support 150亊110mm
To the head of this page
It makes an effort as brought close to a color as original as possible, and there is an image when it is actual and it differs somewhat from the color.
Please acknowledge it.
There are semi-standardized goods and special goods besides the above-mentioned, too. Please inquire.
Moreover, it will produce if the measuring load, the stroke, and the speed, etc. can be specified and consult, please.
